Camera
IR-20M
|
|
|
Features
• Built-in color CCD camera
• (night vision) and lens
• IR Distance : 20 ~25 Meters
• Long life IR LED (up to 10,000
• hours)
• Smart IR on/off control
• IP66 Weatherproof housing
|
Model Number
|
NT-B20MR
|
NT-B20MS
|
NT-B20HS
|
|
|
15,734Hz(H) , 60Hz(V)
15,734Hz(H) , 50Hz(V)
|
|
Scanning Frequency
|
NTSC
|
|
PAL
|
|
512(H) x 492(V)
512(H) x 582(V)
|
|
Electronic Shutter
|
NTSC
|
|
PAL
|
|
1/60-100,000sec.
1/50-100,000sec.
|
768 (H) x 492(V)
752 (H) x 582(V)
|
|
|
1/3" SHARP CCD
420 TV lines
|
1/3" SONY Super HAD CCD
520 TV lines
|
|
Sensitivity
|
0.3Lux, 0 Lux at IR on
|
0.2Lux, 0 Lux at IR on
|
0.5Lux, 0 Lux at IR on
|
|
Signal to Noise
|
More than 48dB
|
|
Gain Control
|
AGC
|
|
White Balance
|
Auto ATW 2500-9500 °K
|
|
BLC
|
Auto
|
|
|
Gamma Correction
|
0.45
|
|
SYNC System
|
Internal
|
|
Lens/Fousc point
|
4.3mm (Optional 6mm, 8mm )
|
|
Video Output
|
1.0 Vp-p, 75 Ohm
|
|
IR LED
|
24 units 850nminfrared LED
|
|
IR Distance
|
20~25 meters (Subject to IR reflection conditions )
|
|
IR Status
|
IR on: Under 10 Lux, by PT auto control
|
|
LED life
|
More than 10,000 Hours
|
IP 66
|
|
Power Requirement (± 10%)
|
DC12V, 500mA
|
|
Power Consumption (± 10%)
|
IR on: 300mA, IR off:80mA
|
IR on: 300mA, IR off:100mA
|
|
Construction
|
|
|
Operation Temp.
|
Operating: -20 ~ + 55 °C , Storage: -30 ~ + 80 °C , Humidity:0~95%RH
|
|

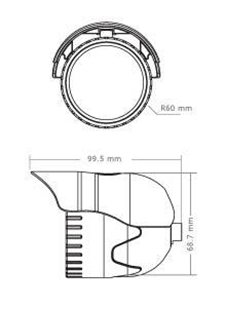

Dimensions ( mm )
|
60 (R) x 68.7 (H) x 99.5(L)
|
|
Weight ( N.W)
|
265g
|
|
* Design and specifications are subject to change without notice
|
IR-40M
|
|
|
|
|
Features
• Built-in color CCD camera
• (night vision) and lens
• IR Distance : 20 ~25 Meters
• Long life IR LED (up to 10,000
• hours)
• Smart IR on/off control
• IP66 Weatherproof housing
|
Model Number
|
NT-G40MR
|
NT-G40MS
|
NT-G40HS
|
|
|
525 lines 2:1 interlace
625 lines 2:1 interlace
|
|
Scanning Frequency
|
NTSC
|
|
PAL
|
|
15,734Hz(H) , 60Hz(V)
15,625Hz(H) , 50Hz(V)
|
|
|
512(H) x 492(V)
512(H) x 582(V)
|
|
Electronic Shutter
|
NTSC
|
|
PAL
|
|
1/60-100,000sec.
1/50-100,000sec.
|
|
|
1/3" SHARP CCD
420 TV lines
|
1/3" SONY Super HAD CCD
520 TV lines
|
|
Sensitivity
|
0.3Lux, 0 Lux at IR on
|
0.2Lux, 0 Lux at IR on
|
0.5Lux, 0 Lux at IR on
|
|
Signal to Noise
|
More than 48dB
|
|
Gain Control
|
AGC
|
|
White Balance
|
Auto ATW 2500-9500 °K
|
|
BLC
|
Auto
|
|
|
Gamma Correction
|
0.45
|
|
SYNC System
|
Internal
|
|
Lens/Fousc point
|
4.3mm (Optional 6mm, 12mm )
|
|
Video Output
|
1.0 Vp-p, 75 Ohm
|
|
IR LED
|
49 units 850nm infrared LED
|
|
IR Distance
|
40 meters (Subject to IR reflection conditions )
|
|
IR Status
|
IR on: Under 10 Lux, by PT auto control
|
|
LED life
|
More than 10,000 Hours
|
IP 66
|
|
Power Requirement (± 10%)
|
DC12V, 1A
|
|
Power Consumption (± 10%)
|
IR on: 500mA, IR off:80mA
|
IR on: 500mA, IR off:100mA
|
|
Construction
|
|
|
Operation Temp.
|
Operating: -20 ~ + 55 °C , Storage: -30 ~ + 80 °C
|
|

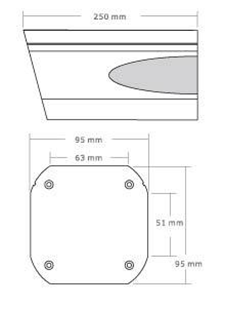

Dimensions ( mm )
|
95 (H) x 95 (W) x250(L)
|
|
Weight ( N.W)
|
|
|
* Design and specifications are subject to change without notice
|
Speed Done
|
|
|
|
Features
• waterproof with heater and fan
• SONY EXVIEW CCD
• 540 TVL HIGH Resolution
• 0.002 Lux Minimum Illumination
• 23x Optical Zoom, 10x Digital Zoom
• Auto mechanical IR cut
• Pan & Tilt speed proportional to zoom ratio
• High speed Pan 400o/sec, Tilt 330o/sec
• Auto flip
• Auto cruise
• 128 preset points
• Alarm I/O (4 in / 1 out)
• IR remote controller
• RS-485 parallel link max. 256 units
|
Specifications
Housing
|
Outdoor
|
|
Model No. (375oRotation)
|
NT-ST710
|
|
Image sensor
|
1/4" COLOR SONY, Exview CCD (Day & Night)
|
|
TV Lines
|
540 TVL
|
|
Effective Pixels
|
NTSC : 410K Pixel / PAL : 470K Pixel
|
|
Sensitivity
|
0.1 Lux (Color) / 0.02 Lux (B/W) / 0.002 Lux (SU)
|
|
Lens
|
f 3.6~82.8mm / F 1.6~3.8
|
|
Zoom
|
23x optical zoon, 10x digital zoom
|
|
S/N Ratio
|
50dB (AGC OFF)
|
|
IR-Cut Filter
|
Auto / Manual
|
|
Focus
|
Auto / Manual
|
|
Electronic shutter
|
NTSC:1/60 ~ 1/100,000 Sec. / PAL:1/50 ~ 1/100,000 Sec.
|
|
Video output
|
1.0 Vp-p, 75Ω
|
|
Gain Control
|
Super AGC 0 ~ 36dB
|
|
White Balance
|
ATW 2500o ~ 9500oK Preset / Manual
|
|
Back Light Control
|
Super BLC / 48 zone BLC
|
|
Function setup
|
OSD Menu
|
|
Rotation mode
|
Auto Pan Feature / Preset Position Patrol / Auto-Flip
|
|
Rotation angle
|
Horizontal Pan 0o ~ 375o / Vertical Tilt 0o ~ 90o
|
|
Rotation speed
|
Horizontal Pan 400o/sec / Vertical Tilt 330o/sec
|
|
Speed setting
|
Auto: Approx. 2.5~60˚/sec(Variable), Manual: Approx. 2.5~160˚/sec(Variable),
|
|
Stop duration
|
5 ~ 255 Sec (Variable)
|
|
Alarm I/O
|
4 inputs / 1output
|
|
Preset points
|
128 Points
|
|
Control interface
|
Infrared Remote Controller + RS-485 Control
|
|
Parallel link (RS485)
|
Max. 256 units
|
|
Protocols
|
PELCO-D 2400, PELCO-P 4800, PELCO-P 9600, Neotech-A
|
|
Power supply
|
DC13.5V / 2.5A
|
|
Operation temperature
|
-30oC~ 60oC / 20% ~ 90% RH
|
|
Fan / Heater
|
Fan: On40oC, Off 30oC
Heater: On-5oC, Off +5oC
|
|
Dome cover
|
-
|
|
Material
|
Aluminum alloy IP66 waterproof casing
|
|
Dimensions
|
217(L)x217(W)x175(H) mm
|
|
Weight
|
3.4Kg
|
DVR
4ch- H.264 DVR
|
|
|
|
Features
• H.264 Algorithm hardware compression
• 4 channel DVR 120(100)fps recording capability
• Supports audio available
• Pentaplex operation (Playback / Recording / Backup / Ethernet / Live)
• Multi Language OSD
• IR Remote Controller
• VGA output (for LCD Monitor)
• USB(Device) port for firmware upgrade
• USB2.0(Host) for back up
• Operate by mouse
• Easy PTZ camera control
• Remote viewer via network
• Supports DDNS (Dynamic Domain Name Server)
|
Model Number
|
H4120- E
|
|
Compression
|
H.264 Hardware compression
|
|
Storage Capacity
|
1 S ATA HDD
|
|
VGA(Option)
|
1CH (Supporting TFT LC D Monitor )
|
|
Video Input
|
4CH
|
|
Video Output
|
Monitor / Spot Monitor
|
|
Audio
|
Input: 1C H, Output:1CH
|
|
Split Screen
|
Full screen, Q uad display
|
|
Compressed Rate
|
5 Step selectable
|
|
|
120fps
100fps
|
|
Recording Resolution
|
360x240(360x288)
|
|
Display
|
Real time for all channel
|
|
Multi-plex
|
Pentaplex operation (Playback / Recording / Backup / Ethernet / Live)
|
|
Zoom
|
Available
|
|
PIP
|
Available
|
|
Motion Detect
|
Detection division : 30x24
|
|
Recording Mode
|
Time, Motion, Schedule, Alarm
|
|
Search Mode
|
Percentage Search, Date/ Time Search, Event Search
|
|
Alarm Input
|
4 Alarm (NO/NC)
|
|
Relay Output
|
1 (NO /NC)
|
|
Backup
|
USB2.0(HOST), Backup via IP Network
|
|
IR Remote Controller
|
Built-in
|
|
Network (TCP/IP)
|
Remote So ftware (Remote live view,playback, and save as AVI) IE (Remote live view,
backup, and save backup to AVI), Multi-User Connection
|
|
Firmware upgrade
|
USB for firmware upgrade
|
|
Operation Temperature
|
41oF~104oF (5oC~40oC)
|
|
Operation Humidity
|
Less than 90%
|
|
Dimension(mm)
|
320(W) x 210(D) x 52(H)
|
|
Weight(N .W)
|
Approx 1.8 kgs (W/O HDD)
|
|
Power Supply
|
DC Adapter(12V DC 5A above)
|
Dual Codec JPEG2000 + H.264
|
|
|
|
Features
• JPEG2000 : Recording & Playback
• H.264: Transmission Via network
• Triplex (Playback / Recording / Network)
• Multi Languages OSD
• IR Remote Controller
• VGA output (for LCD Monitor)
• Jog-shuttle for convenient search
• USB (Device) port for firmware upgrade
• USB2.0 (Host)/CD-RW/DVD-RW for back up
• Easy PTZ camera control by front panel buttons
• Remote viewer via network
• H.264 compression for high speed transmission
• Support DDNS (Dynamic Domain Name Server)
• Support Central monitoring system (CMS)
• Operate by front panel, mouse and remote controller
• 4 channel DVR 240(200)fps recording capability
• 8, 16 channel DVR 480(400)fps recording capability
• 4 channel audio recoding
|
Model Number
|
J2000D-04T2
|
J2000D-08T2
|
J2000D-16T2
|
|
Compression
|
JPEG2000 : Recording & Playback / H.264 : Transmission Via network
|
|
Storage Capacity
|
2 SATA HDDs
|
|
VGA(Option)
|
1CH (Supporting TFT LC D Monitor )
|
|
Video Input
|
4CH BNC
|
8CH BNC
|
16CH BNC
|
|
Video Output
|
Monitor / Spot Monitor / VGA(Option)
|
|
Audio
|
Input: 4CH, Output:1CH
|
|
Split Screen
|
Full screen, Quad display
|
1,4,6,8,9 split
|
1,4,6,8,9,13,16 split
|
|
Compressed Rate
|
Low, Mid, High, Super, Hyper
|
|
|
60fps(Full), 120fps(Dual), 240fps(Quad)
50fps(Full), 100fps(Dual), 200fps(Quad)
|
120fps(Full), 240fps(Dual), 480fps(Quad)
100fps(Full), 200fps(Dual), 400fps(Quad)
|
|
Recording Resolution
|
Full (720x240 / 720x288), Dual(360x240/ 360x288), Quad(360x120 / 360x144)
|
|
Display
|
Real time for all channel
|
|
Tri-plex
|
Tri-plex operation (Playback / Recording / Ethernet )
|
|
Zoom
|
Available
|
|
PIP
|
Available
|
|
Motion Detect
|
Area division : 16x12
|
|
Recording Mode
|
Time, Motion, Schedule, Alarm, Emergency
|
|
Search Mode
|
Percentage Search, Date/ Time Search, Event Search
|
|
Password Protection
|
Admin, Manager, User1~8 Allowed to access the system
|
|
Alarm Input
|
4 Alarm (NO/NC)
|
8 Alarm (NO/NC)
|
16 Alarm (NO/NC)
|
|
Relay Output
|
1 (NO /NC),2A MAX
|
|
Backup
|
USB2.0(HOST), CD-RW or DVD-RW, Download via IP Network, VCR back-up
|
|
IR Remote Controller
|
Built-in
|
|
Network (TCP/IP)
|
Remote Software( Remote live view, playback, and save as AVI), IE( Remote live view,
backup, and save backup to AVI), Two users access is available, High speed transmission
|
|
Firmware upgrade
|
CD-RW / DVD-RW / USB(DEVICE) for firmware upgrade
|
|
Operation Temperature
|
41F~104F (5C~40C)
|
|
Operation Humidity
|
Less than 90%
|
|
Dimension(mm)
|
430(W) x 400(D) x 92(H)
|
|
Weight(N .W)
|
Approx 7.5 kg (W/O HDD)
|
Approx 8 kg (W/O HDD)
|
|
Power Supply
|
DC Adapter(DC12V 6.5A above)
|
|
